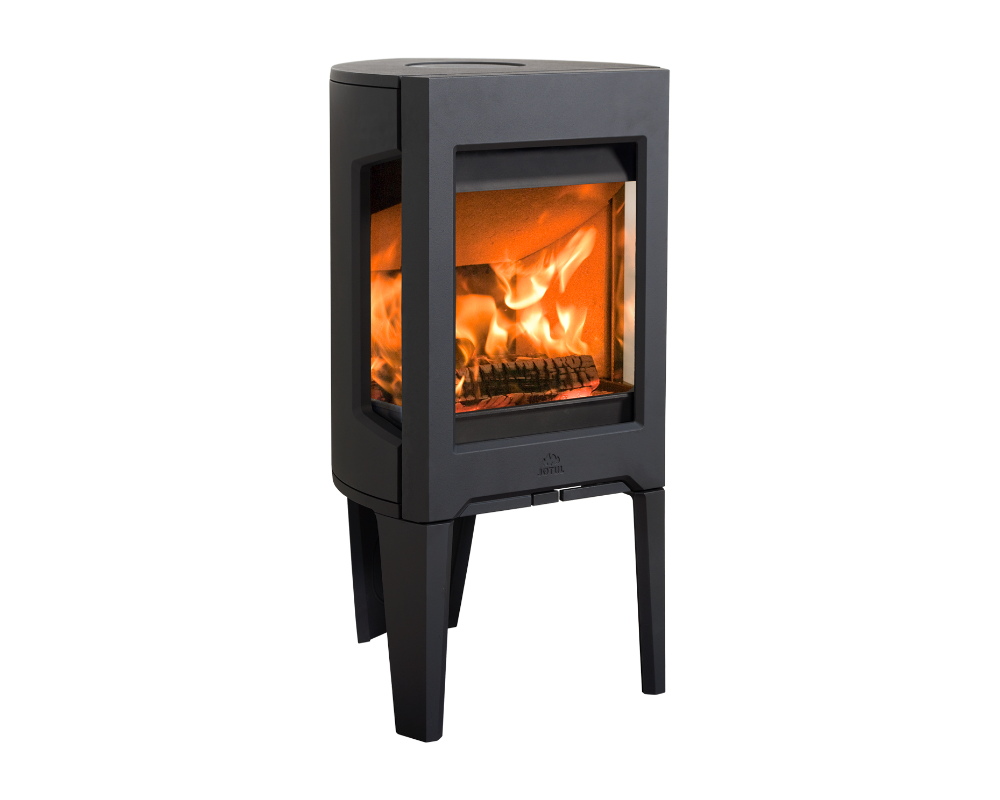

JØTUL F 163

The interior designers favourite woodstove

The Jøtul F 163 wood-burning stove is available in two main variants, with a choice of either black paint or maintenance-free white enamel. It is characterised by its three sturdy legs that give the wood stove an easy and modern look. You can also choose an extra feature of a decorative and heat-retaining top made of soapstone which retains more heat while the fire is burning. The wood stove is designed for modern living and is suitable for low-effect heating. It burns at an optimal level even at 3kW.

Suitable for low effect heating
Ability to be connected to direct external air
Clean burn

Size

Height: 903 mm
Width: 450 mm
Depth: 447 mm

Colors

Black
White

Documents

Installation- and User Manual (1.96 MB)Statement terms (162.53 KB)Exploded view and spareparts (1.21 MB)Universal Heating Top (1.49 MB)Declaration of Performance (350.25 KB)Declaration of Conformity (3.56 MB)Data sheet (1.03 MB)Ecolabel datasheet (173.88 KB)Ecolabel (876.21 KB)

Product Enquiry Find a Nearest Dealer

Technical Specifications

Specifications

Height	903 mm
Width	450 mm
Depth	447 mm
Weight	115 kg
Log size	up to 33 cm
Flue outlet	Ø 150 mm
Flue exit options	Top / Rear
Nom output	5.0 kW
Efficiency	82 %
Heating capacity	up to 129 m²
Heating capacity cubic	up to 225 m³
CO Emission	0.10 %
Dust Product Emission	20 mg/Nm³
NOx Emission	120 mg/Nm³
OGC Emission	107 mg/Nm³
Closed combustion	Yes
Clean burn	Yes
External air intake	Yes
Ash solution	Yes
